防水：
1、使用防水透氣螺塞，平衡內外壓差，避免熱脹冷縮時吸進水氣，出現凝結現象；
2、密封圈采用進口耐老化硅橡膠原料；
3、防護等級IP66。
結構:
1、根據LED散熱特性，合理的散熱通路設計，使LED的熱量快速通過燈具結構傳導出來，保證LED發光效率及使用壽命；
2、燈具采用對流散熱氣流孔通道設計，提高燈具散熱性能，有效降低LED結溫，提高發光效率，降低驅動環境溫度，提高驅動平均壽命；
3、通過精心設計的安裝支架，可以調節燈具投射角度，并可橫向滑動調節，安裝方便快捷。
安全規范：燈具嚴格按照CQC（中國質量認證中心）、EMC（電磁兼容）標準設計。
光學:采用四合一RGBW LED，能夠調出全白光系列(6000K、5000K、4000K、3000K、2200K)及各種不同彩色光（水藍色、天藍色、淡紫色、淡綠色、琥珀色、水紅色）,混光更均勻，白色效果更純正。
控制方式：采用標準DMX512（1990）協議控制。
應用場所：廣場、戶外景觀、大樓外立面、大型建筑、主題公園、娛樂場所等地的景觀照明。
| IP等級 | IP66 |
|---|---|
| 電纜信號線 | 2*1.0mm2橡膠線（低壓）、超五類SFTP雙屏蔽4對雙絞線 |
| 燈具外形 | 長條形 |
| 燈具長度 | 350mm/650mm/1000mm/1250mm、350mm |
| 驅動電流 | 350mA、500mA |
| LED顏色 | 4合1紅綠藍白 |
| LED總顆數 | 6顆/12顆/18顆/24顆（A) 4顆/8顆/12顆/16顆（B5） |
| 發光角度 | 12°/20°/30°/40°/55°/30*15°/50*30° |
| 功率 | 9W/88W/118W（高壓） 27W/53W/79W/105W（低壓） |
| 控制方式 | DMX512(1990) |

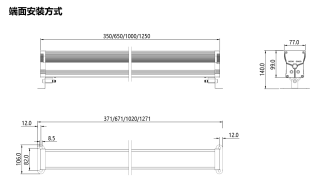

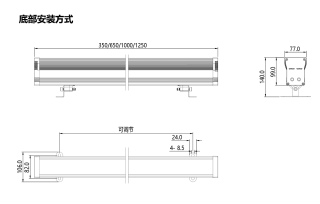

| 安裝方式 | 底部安裝、端面安裝 |
| 單顆光源功率 | 4W/6.5W |
| 防雷等級 | Ⅳ |
| 輸入電壓 | DC36V |
| 玻璃/燈罩 | 5mm 鋼化超白玻璃，碧玉黑表面顏色處理 |
| 電氣等級 | III類 |
| 燈體材質 | 鋁擠型燈體，陽極氧化噴砂表面處理 |
F3334A-24-UN-RC(5030-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(40-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(3015-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(30-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(20-XL-24RGBWN-AJ,L1250mm,C,CT)配光曲線.pdf
F3334A-24-UN-RC(12-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3333A-18-UN-RC(5030-XL-18RGBWN-AJ,L1000mm,C,CT配光曲線).pdf
F3333A-18-UN-RC(40-XL-18RGBWN-AJ,L1000mm,C,CT配光曲線).pdf
F3333A-18-UN-RC(3015-XL-18RGBWN-AJ,L1000mm,C,CT配光曲線.pdf
F3333A-18-UN-RC(30-XL-18RGBWN-AJ,L1000mm,C,CT)配光曲線.pdf
F3333A-18-UN-RC(20-XL-18RGBWN-AJ,L1000mm,C,CT)配光曲線.pdf
F3333A-18-UN-RC(12-XL-18RGBWN-AJ,L1000mm,C,CT)配光曲線.pdf
F3332A-12-UN-RC(5030-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(40-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(3015-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(30-XL-12RGBWN-AJ,L650mm,C,CT)配光曲線.pdf
F3332A-12-UN-RC(20-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(12-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3331A-6-36DC-RC(5030-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(40-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(3015-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(30-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(20-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(12-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3334A-24-UN-RC(5030-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(40-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(3015-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(30-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(20-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(12-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3333A-18-UN-RC(5030-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(40-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(3015-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(30-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(20-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(12-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3332A-12-UN-RC(5030-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(40-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(3015-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(30-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(20-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(12-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3331A-6-36DC-RC(5030-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(40-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(3015-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(30-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(20-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(12-XL-6RGBWN-AJ,L350,C,CT).ies
F3333大功率四合一洗墻.pdf
F3333大功率四合一洗墻.pptx
F3334A-24-UN-RC(5030-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(5030-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(5030-XL-24RGBWN-AJ,L1250mm,C,CT).gms
F3334A-24-UN-RC(40-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(40-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(40-XL-24RGBWN-AJ,L1250mm,C,CT).gms
F3334A-24-UN-RC(3015-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(3015-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(3015-XL-24RGBWN-AJ,L1250mm,C,CT).gms
F3334A-24-UN-RC(30-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(30-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(30-XL-24RGBWN-AJ,L1250mm,C,CT).gms
F3334A-24-UN-RC(20-XL-24RGBWN-AJ,L1250mm,C,CT)配光曲線.pdf
F3334A-24-UN-RC(20-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(20-XL-24RGBWN-AJ,L1250mm,C,CT).gms
F3334A-24-UN-RC(12-XL-24RGBWN-AJ,L1250mm,C,CT配光曲線).pdf
F3334A-24-UN-RC(12-XL-24RGBWN-AJ,L1250mm,C,CT).ies
F3334A-24-UN-RC(12-XL-24RGBWN-AJ,L1250mm,C,CT).gms
F3333A-18-UN-RC(5030-XL-18RGBWN-AJ,L1000mm,C,CT配光曲線).pdf
F3333A-18-UN-RC(5030-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(5030-XL-18RGBWN-AJ,L1000mm,C,CT).gms
F3333A-18-UN-RC(40-XL-18RGBWN-AJ,L1000mm,C,CT配光曲線).pdf
F3333A-18-UN-RC(40-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(40-XL-18RGBWN-AJ,L1000mm,C,CT).gms
F3333A-18-UN-RC(3015-XL-18RGBWN-AJ,L1000mm,C,CT配光曲線.pdf
F3333A-18-UN-RC(3015-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(3015-XL-18RGBWN-AJ,L1000mm,C,CT).gms
F3333A-18-UN-RC(30-XL-18RGBWN-AJ,L1000mm,C,CT)配光曲線.pdf
F3333A-18-UN-RC(30-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(30-XL-18RGBWN-AJ,L1000mm,C,CT).gms
F3333A-18-UN-RC(20-XL-18RGBWN-AJ,L1000mm,C,CT)配光曲線.pdf
F3333A-18-UN-RC(20-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(20-XL-18RGBWN-AJ,L1000mm,C,CT).gms
F3333A-18-UN-RC(12-XL-18RGBWN-AJ,L1000mm,C,CT)配光曲線.pdf
F3333A-18-UN-RC(12-XL-18RGBWN-AJ,L1000mm,C,CT).ies
F3333A-18-UN-RC(12-XL-18RGBWN-AJ,L1000mm,C,CT).gms
F3332A-12-UN-RC(5030-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(5030-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(5030-XL-12RGBWN-AJ,L650mm,C,CT).gms
F3332A-12-UN-RC(40-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(40-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(40-XL-12RGBWN-AJ,L650mm,C,CT).gms
F3332A-12-UN-RC(3015-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(3015-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(3015-XL-12RGBWN-AJ,L650mm,C,CT).gms
F3332A-12-UN-RC(30-XL-12RGBWN-AJ,L650mm,C,CT)配光曲線.pdf
F3332A-12-UN-RC(30-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(30-XL-12RGBWN-AJ,L650mm,C,CT).gms
F3332A-12-UN-RC(20-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(20-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(20-XL-12RGBWN-AJ,L650mm,C,CT).gms
F3332A-12-UN-RC(12-XL-12RGBWN-AJ,L650mm,C,CT配光曲線).pdf
F3332A-12-UN-RC(12-XL-12RGBWN-AJ,L650mm,C,CT).ies
F3332A-12-UN-RC(12-XL-12RGBWN-AJ,L650mm,C,CT).gms
F3331A-6-36DC-RC(5030-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(5030-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(5030-XL-6RGBWN-AJ,L350,C,CT).gms
F3331A-6-36DC-RC(40-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(40-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(40-XL-6RGBWN-AJ,L350,C,CT).gms
F3331A-6-36DC-RC(3015-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(3015-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(3015-XL-6RGBWN-AJ,L350,C,CT).gms
F3331A-6-36DC-RC(30-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(30-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(30-XL-6RGBWN-AJ,L350,C,CT).gms
F3331A-6-36DC-RC(20-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(20-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(20-XL-6RGBWN-AJ,L350,C,CT).gms
F3331A-6-36DC-RC(12-XL-6RGBWN-AJ,L350,C,CT)配光曲線.pdf
F3331A-6-36DC-RC(12-XL-6RGBWN-AJ,L350,C,CT).ies
F3331A-6-36DC-RC(12-XL-6RGBWN-AJ,L350,C,CT).gms
